GlidePoint TM065049 Gen6 Trackpad

The TM065049 Gen6 trackpad module (formerly TM9925) from Cirque measures just 65.0 x 49.0 mm, making it a perfect fit for products where space is at a premium. Designed to support both USB® and PS/2® communication, it comes in two hardware versions: USB + PS/2 or PS/2-only. Extra features can also be enabled through firmware. If you need guidance or custom options, our Cirque team is happy to help you find the right solution.

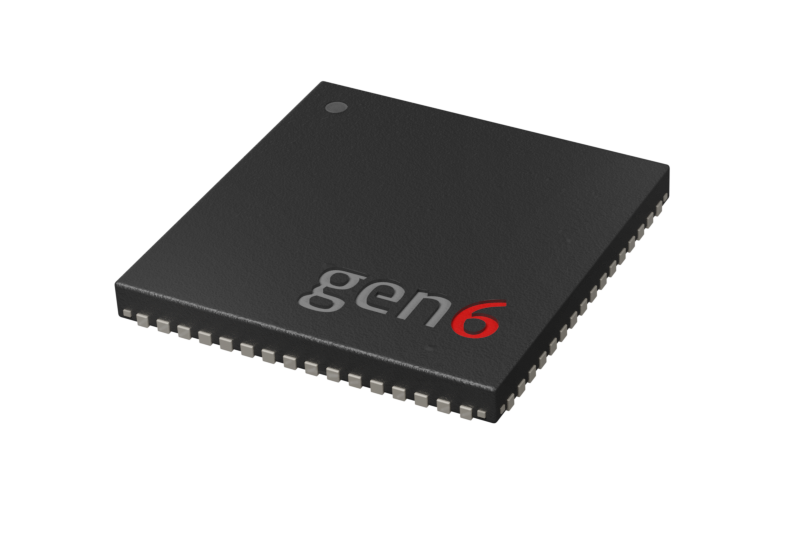

Featuring Gen6 Touch Controller

Cirque's Gen6 ASIC powers the TM065049 with high-resolution touch sensing, using the same technology proven in millions of notebook computer touchpads. It’s multi-core architecture enables advanced native Windows PTP gestures and fast, low-latency input—without the need for custom drivers.

PTP Multi-finger Gestures Native to
Microsoft Windows
Multi-core Architecture
Self / Mutual Cap Support
-25 to 85°C Operating range
for industrial applications

Unlock full gesture control in Windows 10 with Cirque’s Cirque TM065049 native PTP support.

PTP Gestures

Touchpad PTP Post

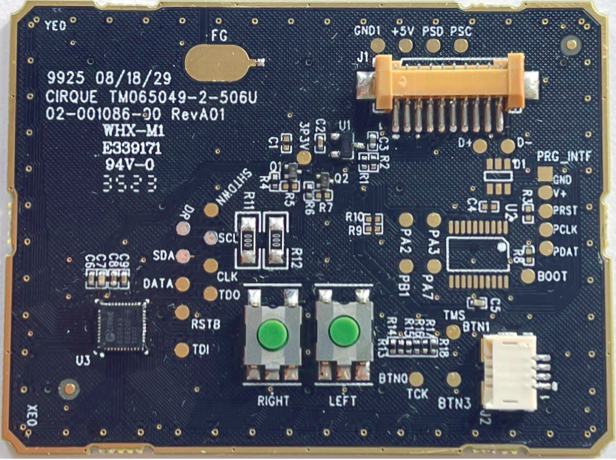

Cirque's TM065049 trackpad is a PS/2® or USB® embeded input device. The dimensions for the TM065049 make it ideal for integration into products where space is a constraint.

Applications

Keyboards, keypads, and mouse alternatives
Industrial control panels
Medical instruments
PC peripherals
Point-of-sale devices
Laptops

Features

PS/2 or USB Protocol
Support for up to three buttons
Precise positioning
Power saving idle mode (USB only)
Compact, thin, lightweight module
No additional drivers required
No finger pressure required
Sensitive to small finger movements
PTP and Mouse mode capable


    GlidePoint TM099078 Specifications

    Interface
      PS/2 and USB (with 10-pin cable connector)

      Operating Systems
      Compatible
with standard mouse drivers Cirque Driver available for Windows® 8.1
and earlier operating systems

      Button Support
      Two (2) mechanical buttons

      Physical Parameters
      Length:
65.00 mm

Width: 49.00 mm

Thickness: 5.36 mm (with all components, with overlay)

Weight: 12 g

      Active Sensing Area
       62.50 x 46.50 mm

      Operating Temperature
      -40 to 85°
Celsius

      Operating Humidity
      5% to 95%
relative humidity (non-condensing)

      Storage Temperature
      -40 to
125° Celsius

      ESD
      15 kV when
properly mounted in bezel

      Environmental
      EMI
tolerant and manufactured RoHS compliant

Have Questions or Need a Sample?

Contact Cirque Sales to request TM065049 evaluation units or discuss integration with your product line.

Contact Cirque

Downloads & Developer Resources

Documentation Links

GP-DS-020218 TM065049 Trackpad Specification (PDF)

Developer Notes

Power efficiency of any application is improved with an "idle mode," where the touchpad’s current draw is reduced when a finger is not touching its surface.

The trackpad is fully compatible with standard Windows mouse drivers. No additional driver is required to activate many of its advanced features. Hardware-configurable options on the module allow for taps (function as left-button clicks), corner-taps (function as right-button clicks), vertical scroll (functions as mouse scroll wheel) and more, depending on the specific application.

For custom functionality at the product design stage, Cirque offers software that allows OEMs to enable, disable, or personalize advanced settings and/or reprogram the touch sensitive area.

OEM customers can order a trackpad with a Cirque overlay or without an overlay and purchase their own customized overlay. Custom overlays may include a logo and matching colors. Contact Cirque for overlay design guidelines.
