Circle Touchpad Development Kit

The Circle Touchpad Development Kit makes it easy to get up to speed with Cirque's feature-rich GlidePoint® circle trackpads powered by our latest Gen6 ASIC platform. The dev board includes an Arduino-compatible Teensy 4.0 module and a flexible hardware design. Connectors for easy attachment to the circle trackpads are pre-mounted.

Together with sample code provided by Cirque, this development kit can serve as the foundation for your next product design.

Purchase a dev kit

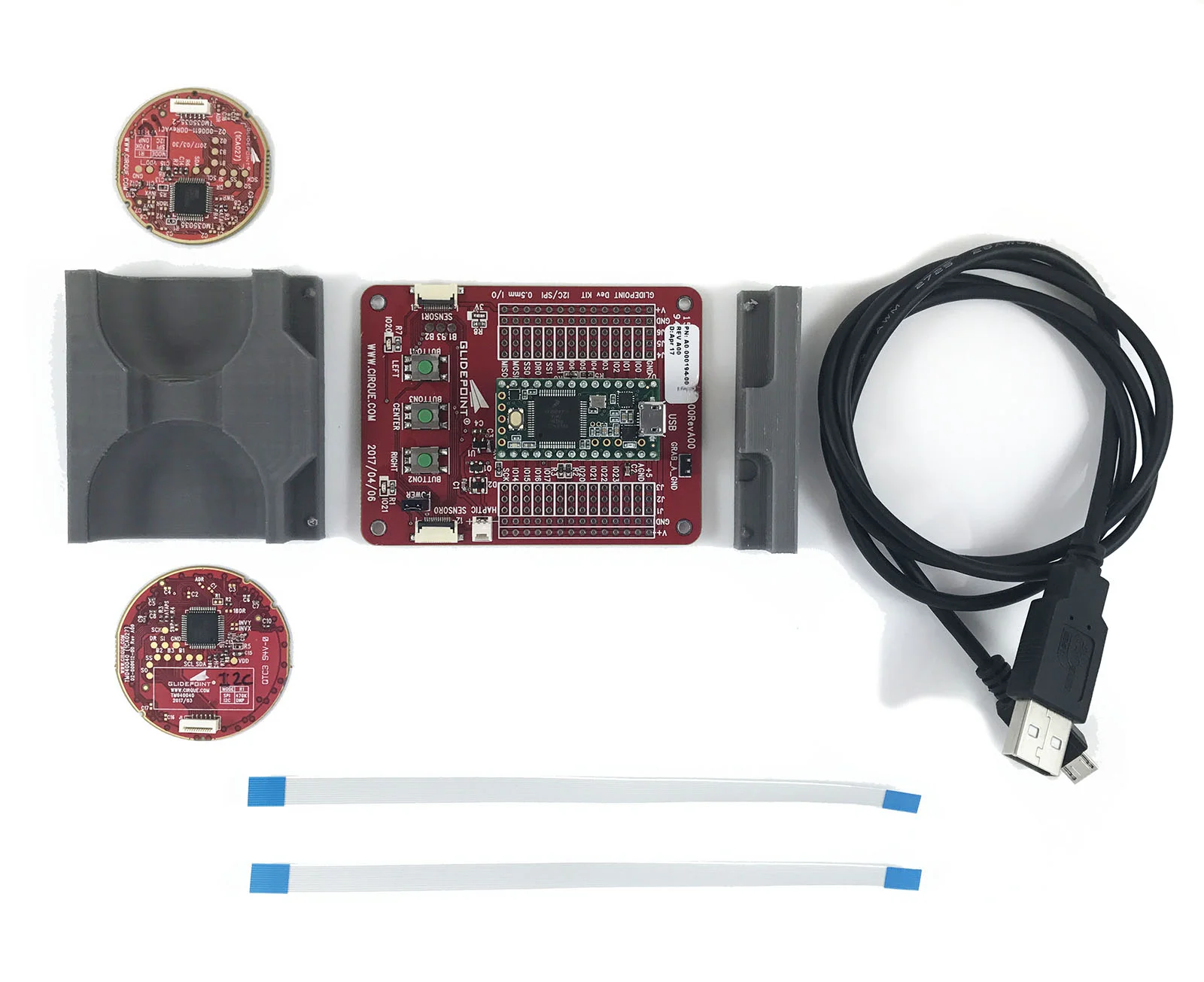

Kit Contents

  • Circle trackpad holder

  • 6-pin flat flex cables (2)

  • USB cable

  • Quick start guide

  • GlidePoint development board (includes Teensy Arduino 4.0)

  • 16mm & 23mm Circle trackpads (DK-000027-00)

  • OR

  • 35mm & 40 mm Circle trackpads (DK-000028-00)

Available Circle Touchpad Dev Kit Configurations

16 - 23 mm Circle Pads

DK-000027-00

Circle Trackpad Dev Kit - 16 & 23mm Circle Trackpad Dev Kit - 16 & 23mm
Circle Trackpad Dev Kit - 16 & 23mm
$99.00

The Circle Trackpad Development Kit makes it easy to get up to speed with Cirque's feature-rich GlidePoint® circle trackpads. The development kit comes with 16 and 35 mm circle touchpads. The dev board includes an Arduino-compatible Teensy 4.0 module and a flexible dev board with through-holes for mocking up your own designs. Connectors for easy attachment  to the circle trackpads are pre-mounted.

Together with sample code provided by Cirque, this development kit can serve as the foundation for your next product design.

35 - 40 mm Circle Pads

DK-000028-00

Circle Trackpad Dev Kit - 35 & 40mm Circle Trackpad Dev Kit - 35 & 40mm
Circle Trackpad Dev Kit - 35 & 40mm
$99.00

The Circle Trackpad Development Kit makes it easy to get up to speed with Cirque's feature-rich GlidePoint® circle trackpads. The development kit comes with 35 and 40 mm circle touchpads. The dev board includes an Arduino-compatible Teensy 4.0 module and a flexible dev board with through-holes for mocking up your own designs. Connectors for easy attachment  to the circle trackpads are pre-mounted.

Together with sample code provided by Cirque, this development kit can serve as the foundation for your next product design.




Developer Resources

Software

Hardware

Below are .STL files for the trackpad holders provided with the dev kit. They can be used for printing additional holders if you purchase different stand-alone trackpad sizes.
