GlidePoint TM035035 Trackpad

GlidePoint TM035035 Trackpad

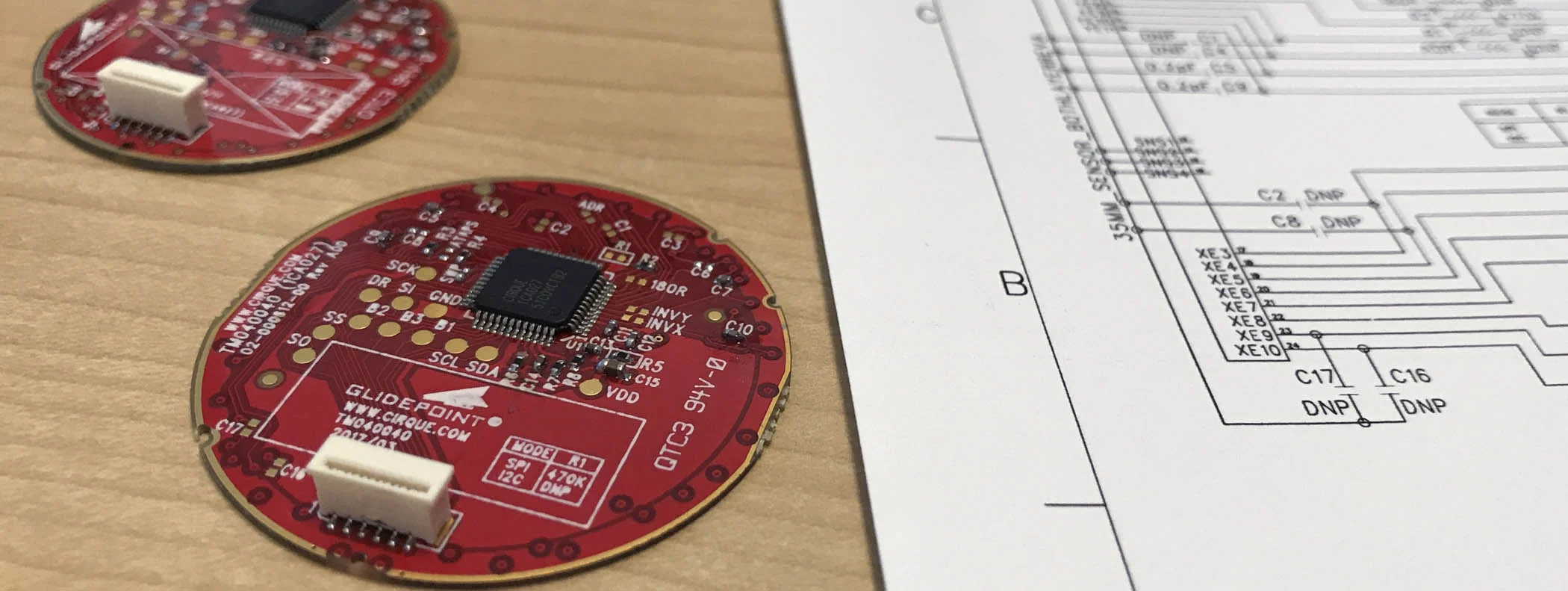

The GlidePoint TM035035 is a unique round trackpad designed by Cirque for use in game controllers, remote controllers and other devices requiring a unique and versatile interface. This module has a 35mm diameter ideal for compact devices.

The TM035035 circle shape can replace or supplement a traditional analog stick or directional pad. Because its a true trackpad (not simply a gesture pad), the TM035035 is completely customizable and can dynamically support different input modes. Set it as a d-pad replacement for quick scrolling through menus, or a precision tracking device for sniper mode.

The TM035035 uses a proven Cirque's capacitive touch controller system-on-chip for an easy to implement solution with extremely low power consumption, ideal for battery powered devices.

APPLICATIONS

  • Virtual reality controllers
  • PC and console game controllers
  • Remote controls
  • Headphones
  • Wireless keyboards
  • Industrial control panels
  • Medical instruments

FEATURES

  • High precision touch tracking.
  • Best in class low power consumption.
  • Compatible with flat or curved plastic overlays.
  • Compatible with Alps HAPTIC™ Reactor force feedback devices.
  • Documentation and reference code provided for easy development.
  • No maintenance required – no moving parts and immune to dust and abuse.

Custom designed circle sensors are also possible.  The hardware and firmware of the TM035035 is easily scalable enabling a wide range of circle sensor sizes. Contact Cirque for more information about customer solutions.

GlidePoint TM035035 Specifications
Touch Controller IC Cirque Custom SOC "Pinnacle" 1CA027
(p/n: 10-020040-000)
Interface SPI or I2C with 12-pin FFC connector
Part Number (I2C) TM035035-2023-000
Part Number (SPI) TM035035-2024-000
Power Supply 2.5 - 3.6V
Power Consuption Active: 2.9 mA
Idle: 1.7 mA
Sleep: 40 µA
Shutdown: 0.23 µA
X/Y Position Sensing Resolution:
1024x1535
Physical Parameters Diameter: 35.00 mm
Radius: 17.5 mm
Circumference: 109.9 mm
Thickness: 5.15 mm with all components
Operating Temperature (IC) -40 to 85° Celsius
Operating Humidity 5% to 95% relative humidity (non-condensing)
Storage Temperature (IC) -40 to 125° Celsius
ESD 15 kV when properly mounted in bezel
Environmental EMI tolerant and manufactured RoHS compliant

Developer Support

Sample Code

An Arduino-based sample project is available for capturing touch data from the TM035035 module. This project utilizes the Teensy 3.2 Arduino development board. An adaptor module is available from Cirque that includes the Teensy 3.2 and allows for easy connection to the TM035035.



Additional documentation and examples  will be coming soon. In the meantime, please contact Cirque for any technical inquires.
